Clodbuster - Steering Plate only (x1) |
What it does |
Whats Included |
How much and where to buy it |
How to install it |
Lets you fit a verticle gearbox mounted Servo to your Clod. Plate can also be used on the rear as a steering lock out.
*now comes with CNC delrin servo posts*
|
1x Carbon servo plate
2 x delrin servo posts, screws
2 x screws, spacers, nuts
|
UK: £13 + £2 post
USA: $17 + $4 shipping
email or buy on ebay by clicking:
|
Attach to your gearbox as shown.
If using the servo plate with the toplink mounts you will need 37mm long screws (supplied if you buy both together)
|
|
| |
Delrin servo mounting posts (pair) |
What it does |
Whats Included |
How much and where to buy it |
|
These universal servo posts can be used on your custom project or as replacements for the steering kits.
These are made from Delrin and have been made on a CNC mill. They are very strong unlike most cheap moulded plastic posts.
|
2 x delrin servo posts
2x screws and washers
|
UK: £3.50 + £1.50 post
USA: $4.50 + $5 shipping
email or buy on ebay by clicking:
|
|
|
| |

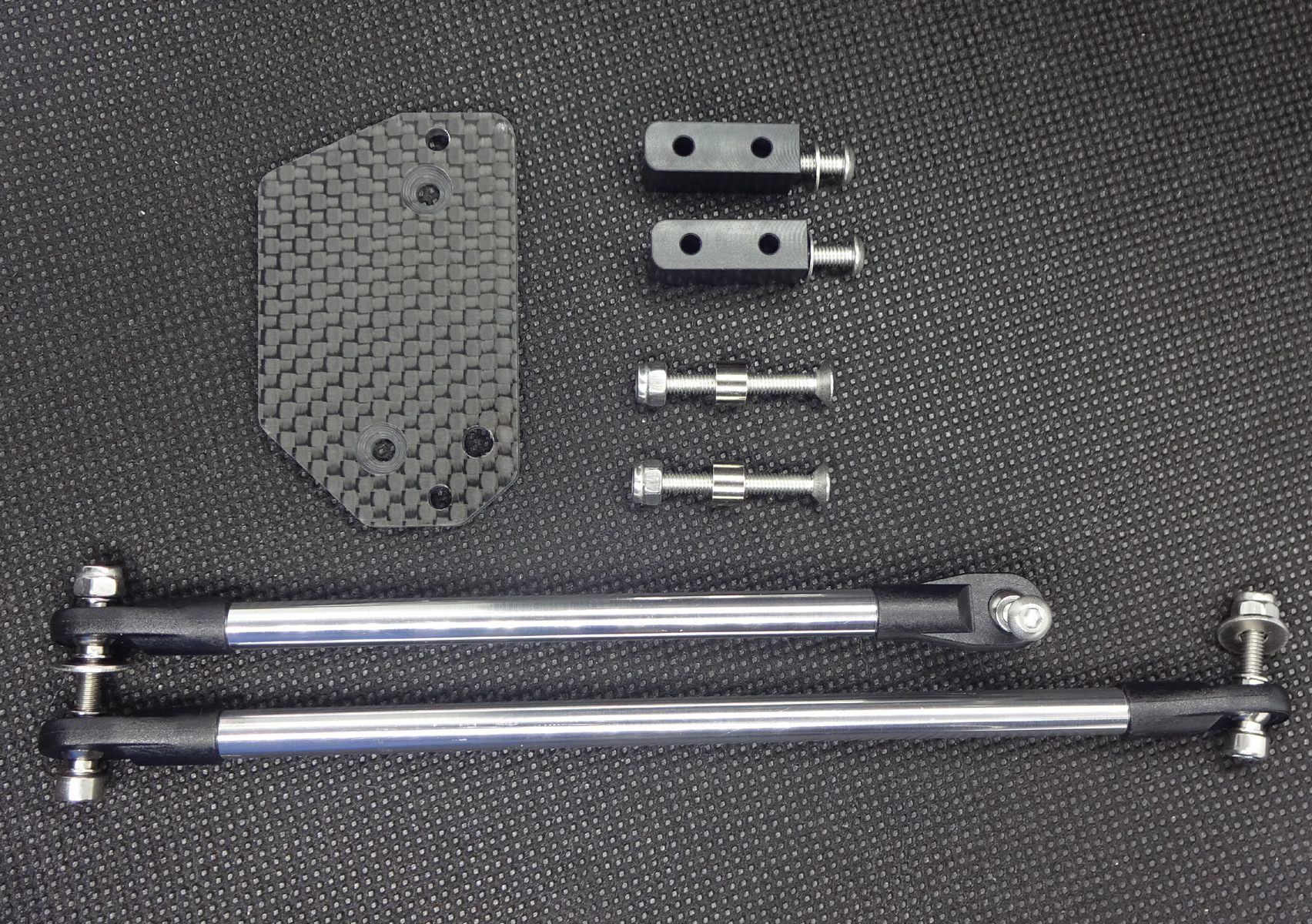

Clodbuster - Steering Plate with linkage (x1) |
What it does |
Whats Included |
How much and where to buy it |
How to install it |
Lets you fit a vertical gearbox mounted Servo to your Clod with alloy linkage ready to attach to your servo horn/saver.
This v2 plate sits no higher than the stock gearcase and doesnt restrict suspension travel.
|
1x Carbon servo plate
2 x servo posts, screws
2 x screws, spacers, nuts
1 x long link + hardware
1 x short steering link + hardware
|
UK: £21 + £2 post
USA: $27 + $5 shipping
email or buy on ebay by clicking:
|
Servo and horn NOT included, rod end is ready to be attached to your servo horn with a 3mm hole.
If using the servo plate with the toplink mounts you will need 37mm long screws (supplied if you buy both together)
|
|
| |
Clodbuster - Bumper |
What it does |
Whats Included |
How much and where to buy it |
|
This bumper is designed to fit around the steering kit and give protection to the servo saver and linkage.
It will fit the stock clodbuster as well as chassis using the V2 toplink mounts like the Razor 2.1.
|
Bumpers, joiners, all hardware
and instructions are included.
|
UK: £31.50 + £1.50 post
USA: $39.50 + $7 shipping
email or buy on ebay by clicking:
|
The lower bumper mounting points are used on the gearcases. The upper hole on the gearcase is shared with the servo plate if used and/or V2 top link mounts.
Hardware is included for all situations.
If you already have a servo and saver on your truck, check there is clearence behind the bumper. It sits 28mm from the front of the carbon servo plate as shown.
|
|
| |

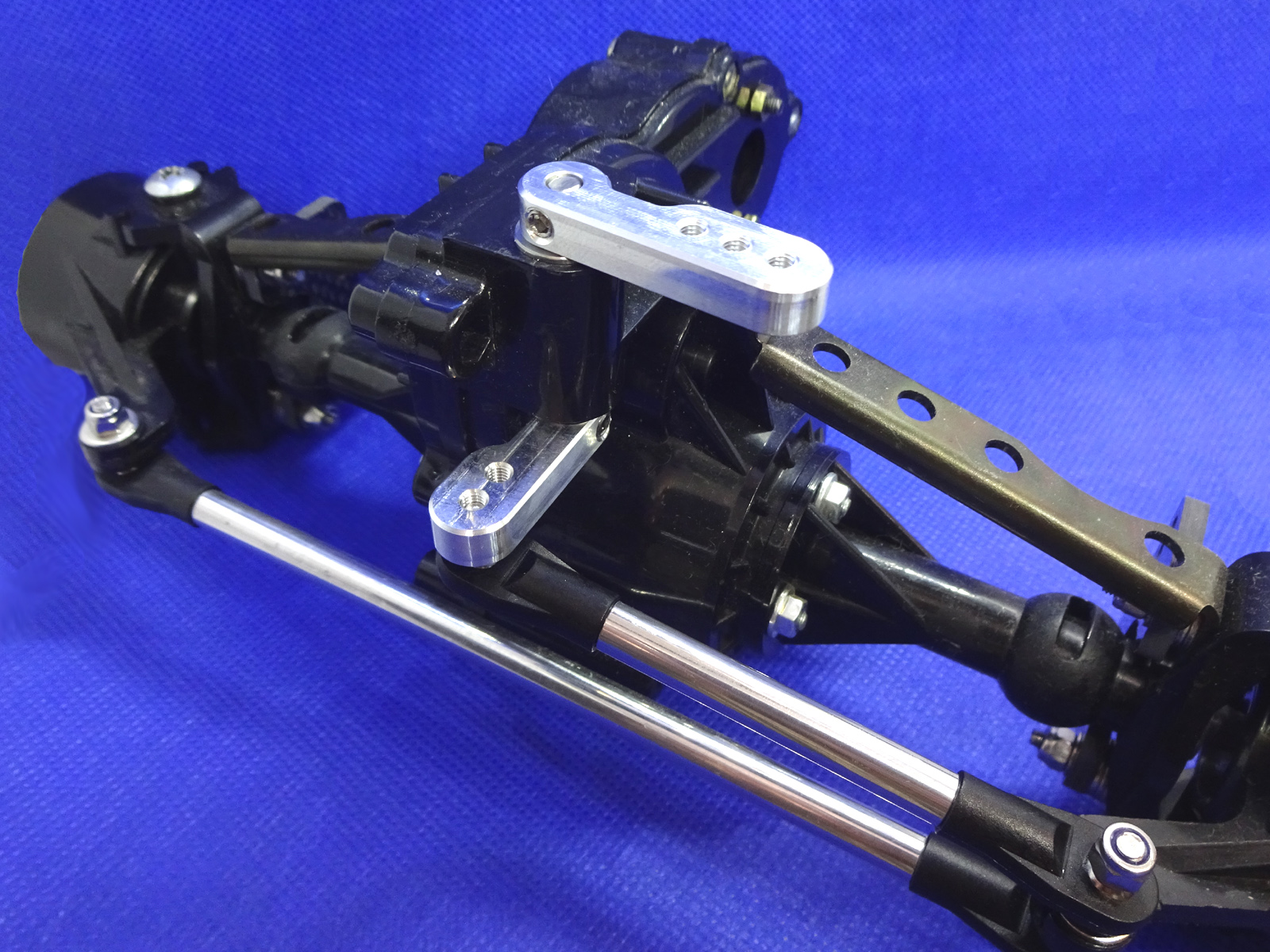

Clodbuster - Alloy Steering Bellcrank (x2) |
What it does |
Whats Included |
How much and where to buy it |
How to install it |
These replace the plastic bellcrank/servo saver found on the stock truck front and rear.
These are much stronger and also run on dual ball bearings for a smoother action.
|
|
2 x long arms
2 x short arms
4 x bearings
2 x steel shafts
grub screws
instructions
|
UK: £38 + £2 post
USA: $54 + $5 shipping
email or buy on ebay by clicking:
|
The arms can be assembled with the long and short arms either way round.
One of the bearings has a flat cut into it, this fits the lower part of the gearbox, flat against the gearcase.
Assemble the top arm with the grub screw tightened on the flat of the 4mm shaft, slide the assembly through the bearings in the gearbox and attach the lower arm in the same way.
|
|
|
| |
Clodbuster – Alloy Steering Bellcrank (x2) + steering linkages (x2)
|
What it does |
Whats Included |
How much and where to buy it |
How to install it |
These replace the plastic bellcrank/servo saver found on the stock truck front and rear.
These are much stronger and also run on dual ball bearings for a smoother action.
Full front and rear bellcrank system as above and steering linkages front and rear. |
|
2 x long arms
2 x short arms
4 x bearings
2 x steel shafts
2 x long linkage
2 x short linkage
all hardware shown
instructions
|
UK: £59 + £2 post
USA: $80 + $5 shipping
email or buy on ebay by clicking:
|
Bellcrank system as above plus the linkages shown, instructions are included on how to assemble the kit with the included hardware.
The arms can be assembled with the long and short arms either way round.
One of the bearings has a flat cut into it, this fits the lower part of the gearbox, flat against the gearcase.
Assemble the top arm with the grub screw tightened on the flat of the 4mm shaft, slide the assembly through the bearings in the gearbox and attach the lower arm in the same way.
|
|
|
| |
Clodbuster - Stock replacement center links V2 |
What it does |
Whats Included |
How much and where to buy it |
How to install it |
These replace the center links on a stock truck. They are the same length as the kit, so will only work for stock wheelbase.
The compliment the upgraded bellcrank kit and match the front and rear steering links.
|
2 x links
Hardware for mounting
|
UK: £10.50 + £1.50 post
USA: $14.00 + $5 shipping
email or buy on ebay by clicking:
|
These fit in place of the stock links, some mounting hardware is included.
For fine adjustment the links now come with a 2mm collar fitted and another spare included so you can increase or decrease the length by 2mm per link if required.
|
|
| |
Clodbuster - Bellcrank Servo Mount (choose Stock, JPS or Hesse gearcase fitment) |
What it does |
Whats Included |
How much and where to buy it |
How to install it |
This servo mount fits in place of the stock motor cover and lets you mount a servo just above the motor. From here it can be linked to the front bellcrank (stock or aftermarket) for steering.
This is a more retro style of mounting the servo and utilising the stock bellcrank system like the old ESP kit let you do.
This wont fit a stock chassis Clod.
|
|
1 x Alloy mount for either: Stock, JPS or Hesse gearcase.
1 x Carbon plate
2 x Servo posts
1 x Steering link
hardware shown.
Stock
Hesse
JPS
|
Choose 1 fitment only, either stock, JPS or Hesse gearcase.
UK: £24 + £2 post
USA: $32 + $5 shipping
email or buy on ebay by clicking:
|
The stock motor cover is replaced by the alloy mount assembly.
Your servo and saver can now be fitted and the link between that and the bellcrank installed.
|
|
|
| |
Carbon Axle tube brace plates |
What it does |
Whats Included |
How much and where to buy it |
How to install it |
These carbon brace plates fix to the axle tubes to strengthen them. They are 3mm thick and will need dremeled / machined hubs give give enough clearance to fit.
|
4 x Carbon plates
8 x screws and locknuts
|
UK: £15.00 + £2 post
USA: $18.00 + $6 shipping
email me or buy on ebay:
|
To fit these plates you will need to drill an extra 3mm in the axle tube, using the plate as a template.
Also the hub needs to be dremeled or machined down to allow enough clearence for the plates. Stock hubs will NOT fit.
The inside face of the brace is machined to sit flat in the axle tube.
|
|
| |
Clodbuster - Steering Plate with rear lockout (x1) |
What it does |
Whats Included |
How much and where to buy it |
How to install it |
This lets you fit the rear steering lockout linkage, with the option to add rear steering in the future.
|
1x Carbon servo plate
2 x screws, spacers, nuts
1 x long link + hardware
1 x short lockout link + hardware
|
UK: £16.50 + £2 post
USA: $21 + $4 shipping
email or buy on ebay by clicking:
|
Attach plate and linkage as shown, lastly attach the link to the plate with the M4 locknut and large washers.
|
|
| |
Clodbuster - Carbon rear lockout plate |
What it does |
Whats Included |
How much and where to buy it |
How to Install it |
This is a light weight rear lockout plate that can be used as a neater alternative to the regular lockout linkage.
|
1 x Carbon rear lockout plate.
2 x screws, locknuts, washers.
|
UK: £12 + £2 post
USA: $15 + $4 shipping
email or buy on ebay by clicking:
|
Mount the plate ontop of the rear hubs with the included hardware as shown.
|
|
| |
Clodbuster - BTA steering kit - Bearing version
Maximum Smoothness
|
What it does |
Whats Included |
How much and where to buy it |
How to Install it |
The axle brace allows you to mount a servo backwards and fit the carbon steering plate behind the axle. The plate has 3x7x3 flanged bearings in each end to to give the smoothest possible steering action with no slop or play.
20mm + 40mm M4 thread included so you can run the servo either way round.

|
Alloy brace, carbon plate with flanged bearings, steering linkage and all hardware shown to mount it.
(extra 3 matching suspension braces can be bought below)
|
UK: £38 + £2 post
USA: $50 + $4 shipping
email or buy on ebay by clicking:
-------------------------------------------
|
The brace is attached to the axle in 3 places and will require you to take your gearbox apart to fit it, use the correct length screws as shown.
the orientation of your servo and linkage position is upto you. However the longer steering linkage will give the most linear action.
|
|
| |
Clodbuster - "BTA" Behind the axle steering kit + Braces |
What it does |
Whats Included |
How much and where to buy it |
How to Install it |
The axle brace allows you to mount a servo backwards and fit the carbon steering plate behind the axle. The plate has flanged bearings in each end.
20mm + 40mm M4 thread included so you can run the servo either way round.
This includes the matching 3 braces.
|
Alloy brace, carbon plate with oilite bushings , steering linkage and all hardware shown to mount it.
and the extra 3 matching suspension braces.
|
UK: £76 + £2 post
USA: $100 + $4 shipping
email or buy on ebay by clicking:
-------------------------------------------
|
The brace is attached to the axle in 3 places and will require you to take your gearbox apart to fit it, use the correct length screws as shown.
Fit the steering linkage with a thin washer each side and snug up the locknut, then back the screw off untill you have free steering movement.
the orientation of your servo and linkage position is upto you. However the longer steering linkage will give the most linear action.
|
|
| |
|
