www.ukmonsters.co.uk

Im based in the UK but ship worldwide

Now available in 4 versions:

Whats the difference?

Stock Plus has 2 piece carbon arms, the Racing has 1-piece carbon plates and revised alloy sides to make it legal for Stock class RCMT racing events.

Both are available in stock wheelbase (10.5”) or +1” for (11.5”)

USA/wordwide prices:	UK prices:
Stock Plus - $260 Stock Plus +1” - $260 Stock Plus Racing - $260 Stock Plus Racing +1"- $260	Stock Plus - £199 Stock Plus +1 ” - £199 Stock Plus Racing - £199 Stock Plus Racing +1"- £199
Shipping $35 UPS 3-5 days email me to buy	Shipping £10 email me to buy
Stock Plus Limited stock	Stock Plus Racing
Stock Plus +1" Limited stock	Stock Plus Racing +1"
Message me to confirm if you want standard wheelbase or +1"

Features:

In a first for UKM the Stock plus chassis kit comes unassembled as a builders kit with a colour instruction manual. This has made it possible to dramatically reduce the packaging size and shipping costs.

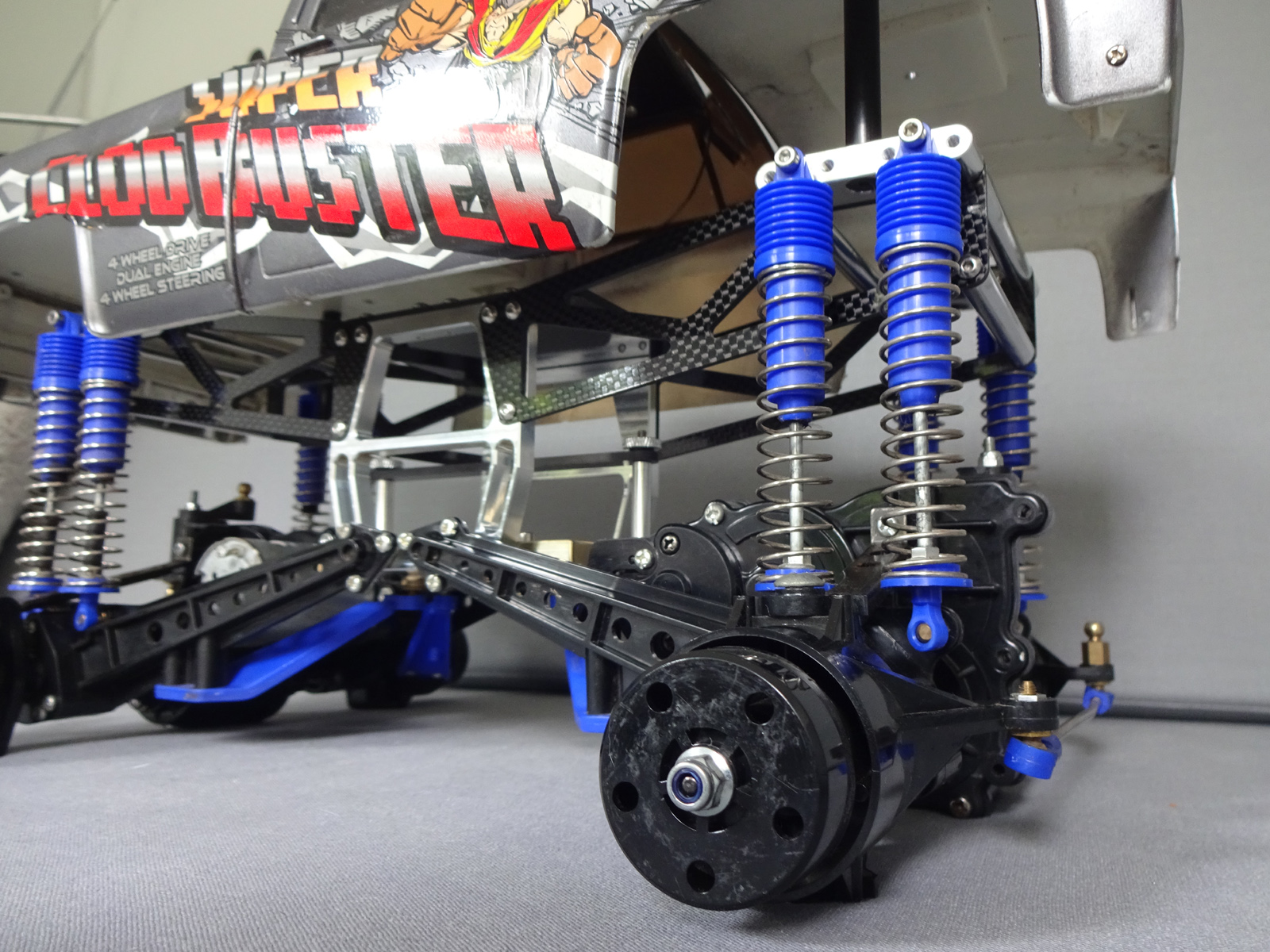

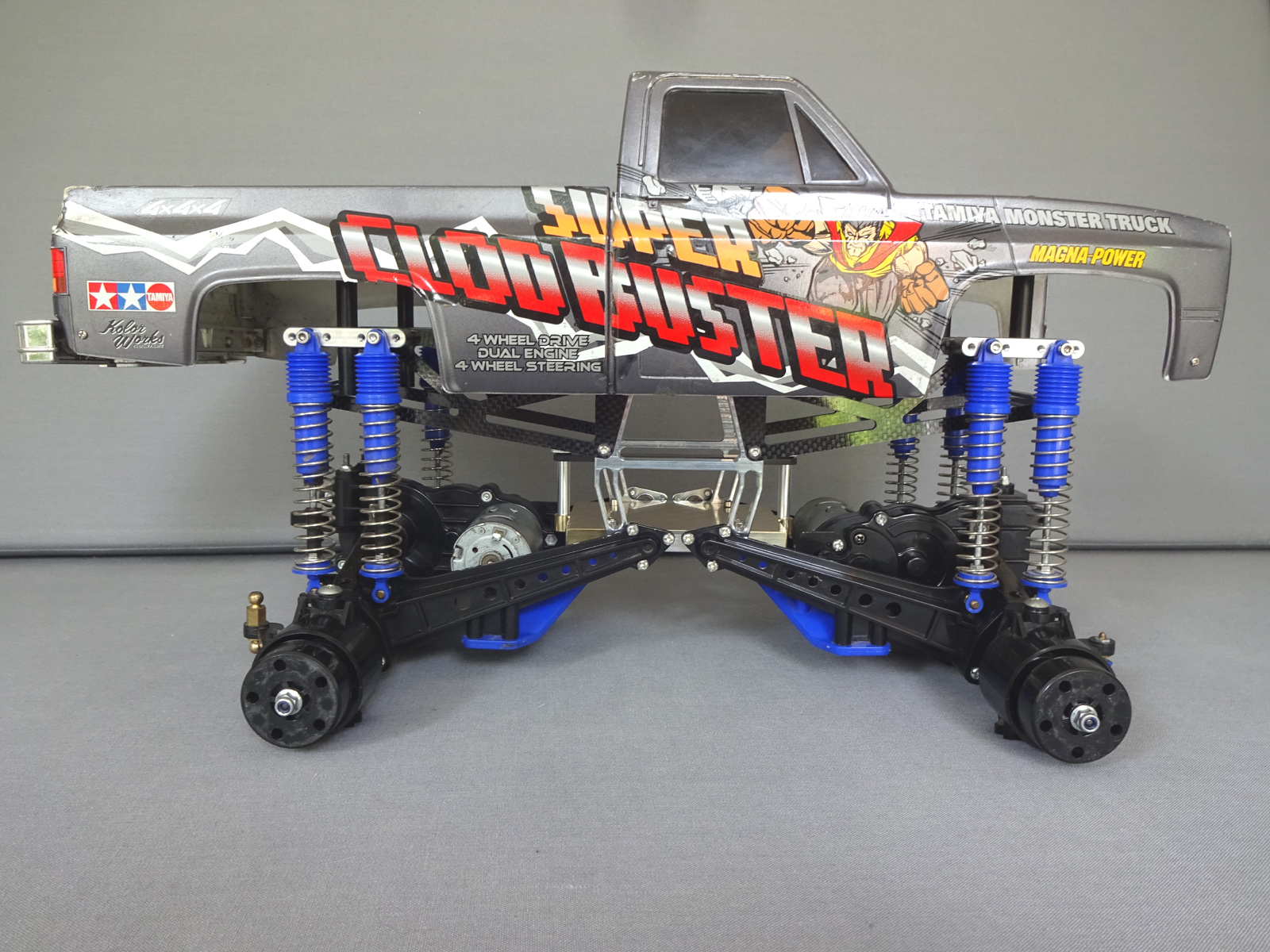

The Stock Plus retains the original suspension mounting points for the ladder bars, shock absorbers and body mounts. It keeps the original 10.5” factory wheelbase for those who want an authentic original look.

The main chassis frame is CNC machined from solid 8mm aluminium alloy and has 3mm carbon fibre wings braced by 8mm alloy brace bars. All included hardware are high quality stainless metric hex head screws.

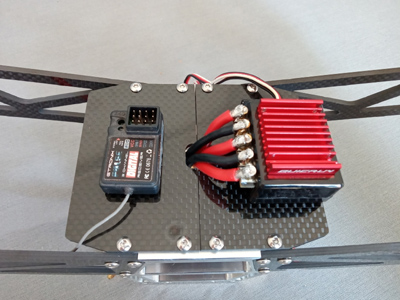

The carbon top deck comes in 2 pieces, both can be used to capture the battery and motor wires if desired. Or just use 1 if you don’t need the extra space!

The delrin body mounts are stronger than the originals and are height adjustable. They can be used as traditional pins for use with body clips or flipped round to use the optional thumb wheels, both options are included.

Installation:

The chassis comes as a kit and requires assembly, full instructions are included.

This chassis kit is designed to replace the stock Clodbuster plastic tub chassis.

It uses the original ladder bar suspension and can retain the original shocks. However our 4-link kits will fit should you want to use them

The body mounts are in the standard locations and fit the orignal clodbuster body shell.

The battery has been relocated to the lower middle of the chassis, there is room for a shorty lipo with dimension no larger than 28mm(H) x 47mm(W) x 98mm(L).

A central servo position cannot be used so you will also need an on axle steering and/or rear lockout solution.

Assembly Guide PDF download















Stock Plus +1" is the same as Stock Plus except it has 11.5" wheelbase, revised brass and side plates are included in the kit.

Already have a Stock Plus Chassis and want a change?

No problem, we have conversion kits to change to another version.

Convert Stock Plus into Stock Plus Racing - $79

Convert Stock Plus Racing into Stock Plus - $79

Convert Stock Plus into Stock Plus +1” - $79

Convert Stock Plus Racing into Stock Plus Racing +1” - $79

Features:

Accepts regular or shorty lipos length ways

Adjustable wheelbase 12" - 13.5"

Brass weights included

3mm Carbon Fibre chassis

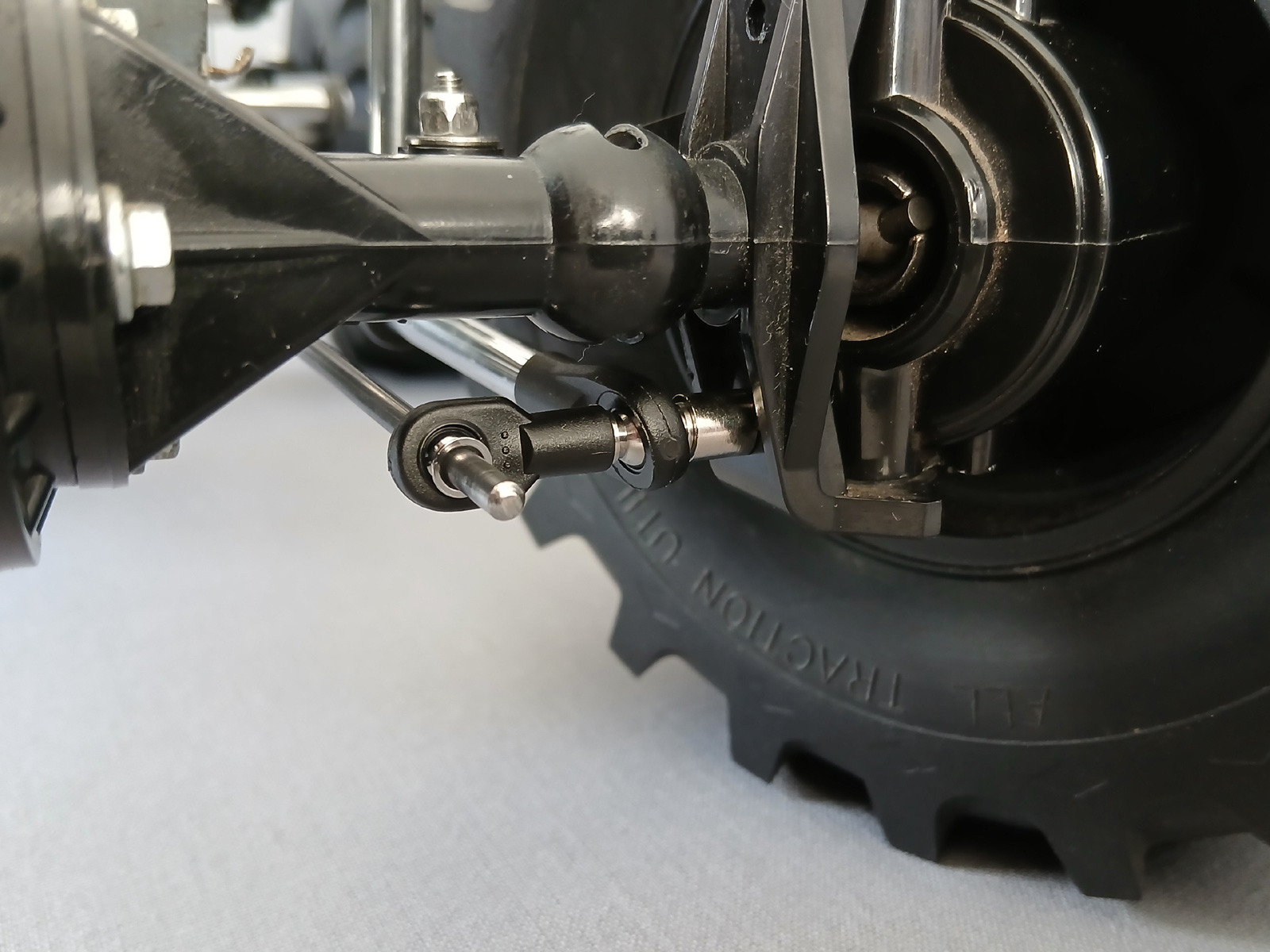

Ball bearing sway bars

CNC Aluminium lower 4 links

Carbon top link mounts

M3 metric stainless hardware

Delrin body mounts 4" apart

Accepts 70-100mm shocks (100 shown)

Chassis comes assembled as shown

email me for best price

UK prices:

Chassis kit only - £240

Shipping £12

or buy on ebay

USA/wordwide prices:

Chassis kit only (no shocks) - $325

Shipping $55 fedex 1-3 days

or buy on ebay

Installation and use:

1) This chassis kit is designed to work with your Clodbuster axles with only minor modifications. A 3mm hole needs to be drilled at the bottom of each axle tube to attach the lower ink mounts.

2) Accepts most 2S long/shorty lipos.

3) Accepts 70-100mm shocks

4) Wheel wideners or wide wheels recommended, stock wheels may rub the lower links on full lock.

PDF Instructions download

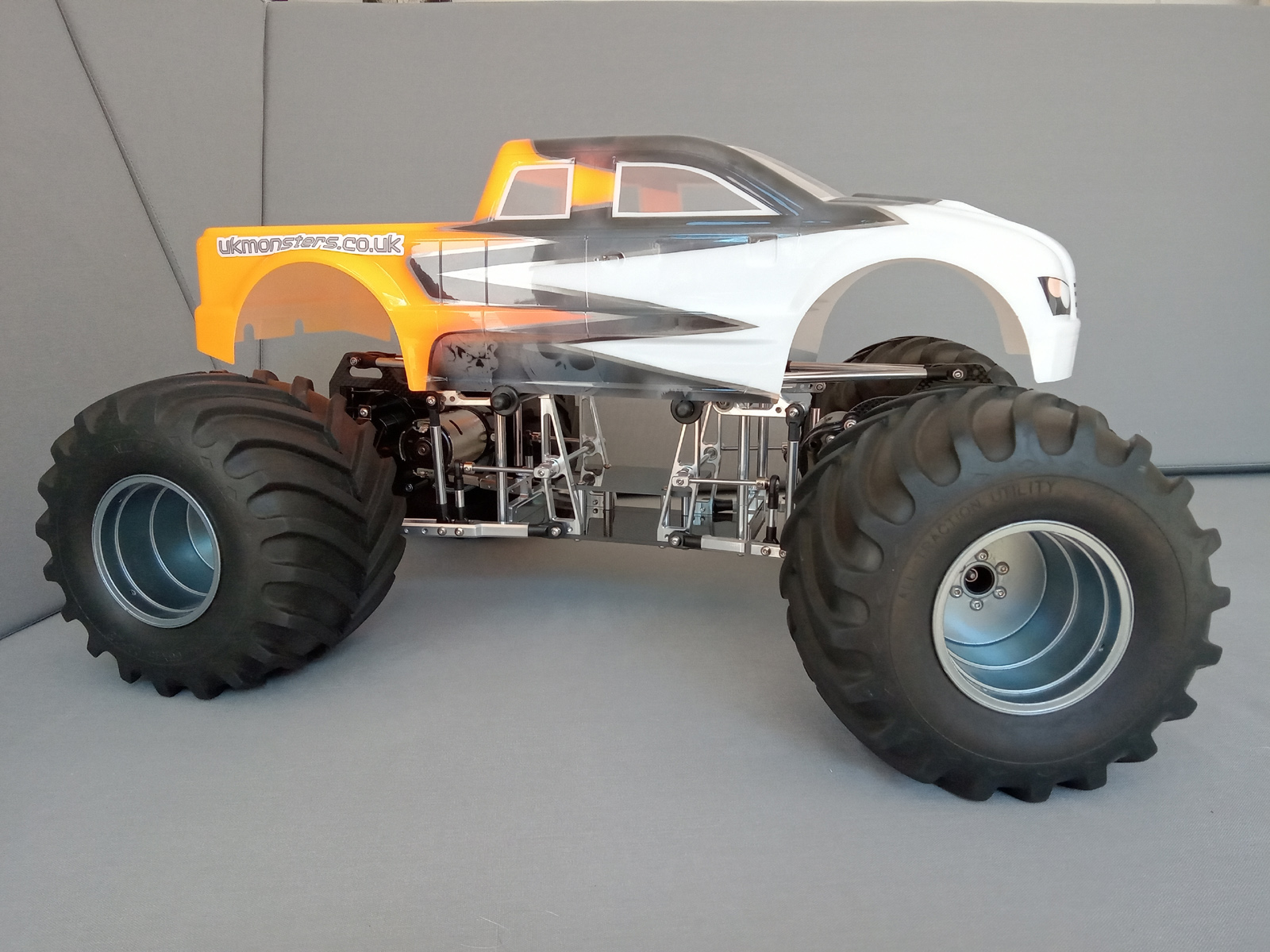

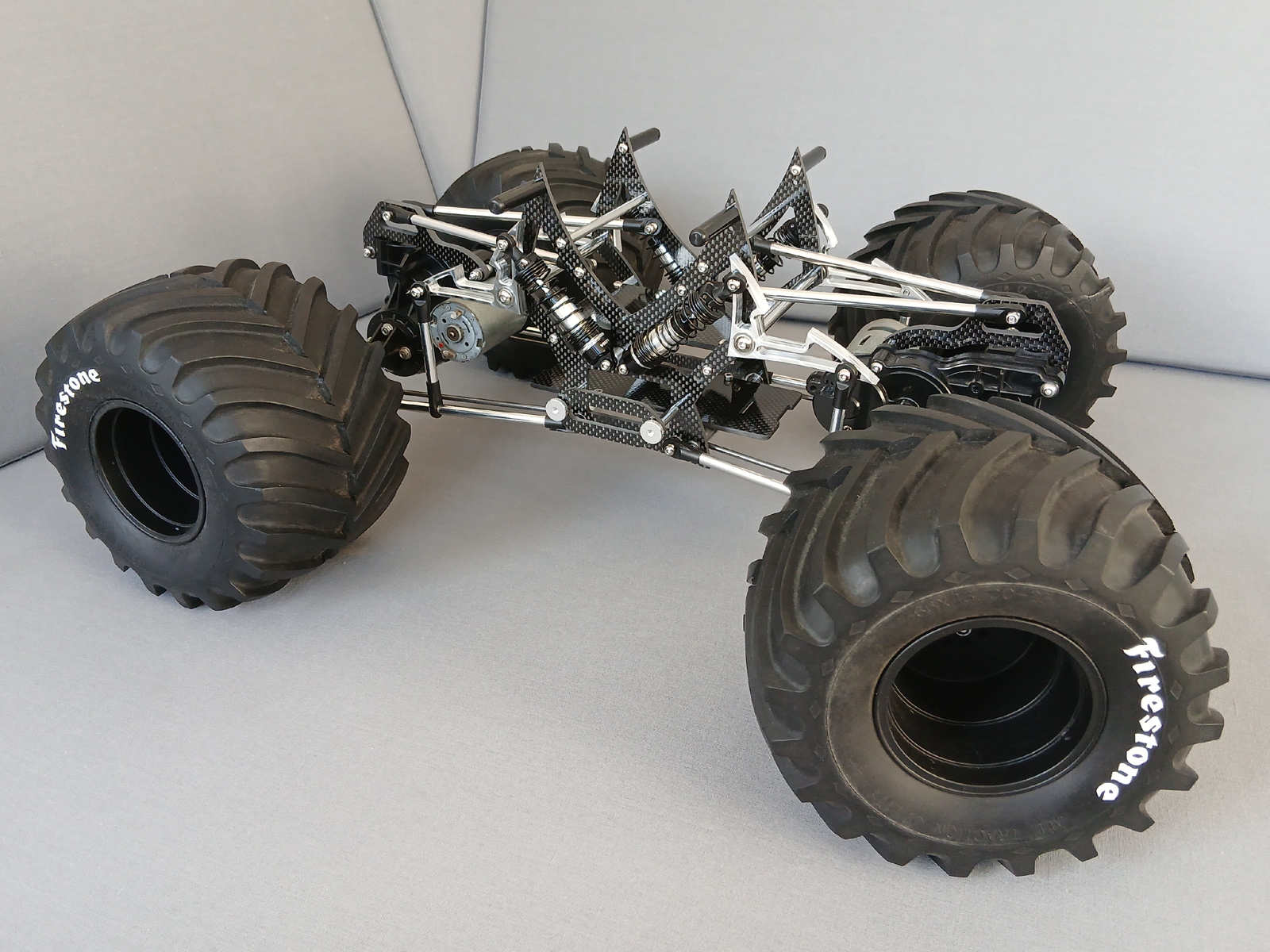

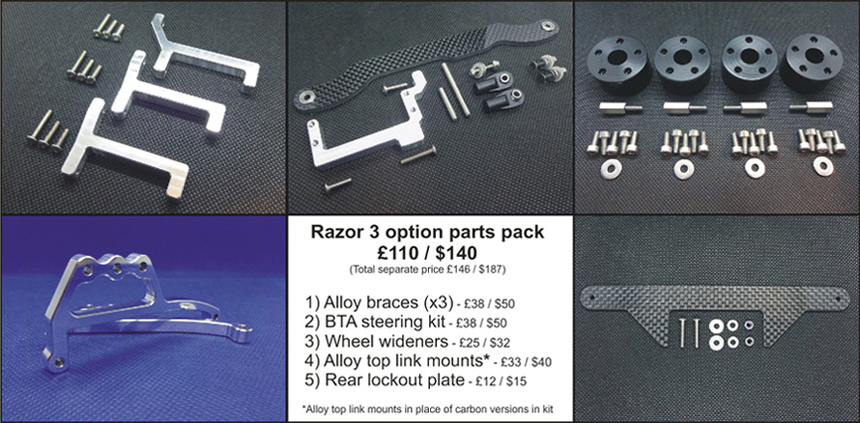

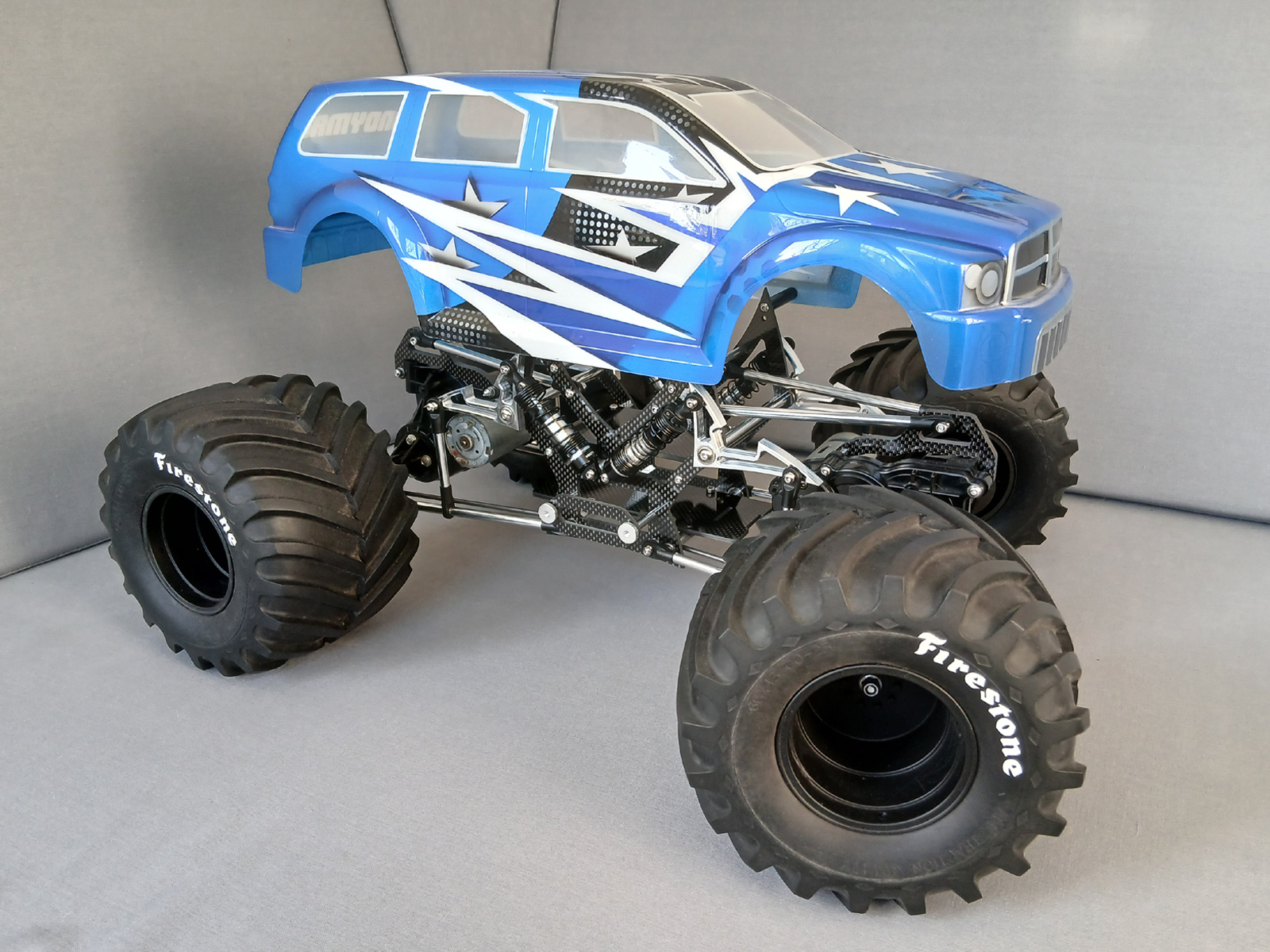

Shown below with optional extra Axle braces, BTA steering and Rear Lockout

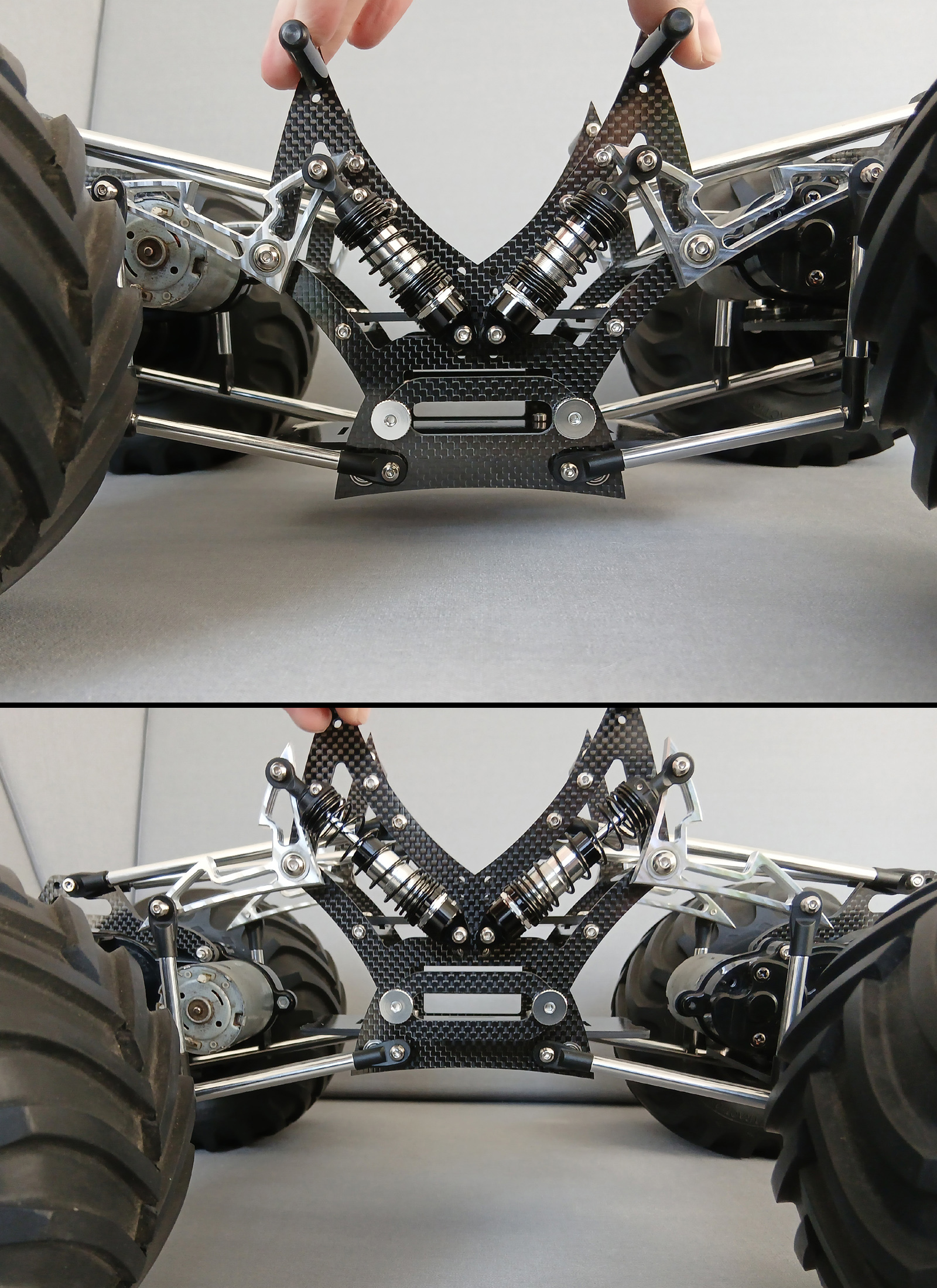

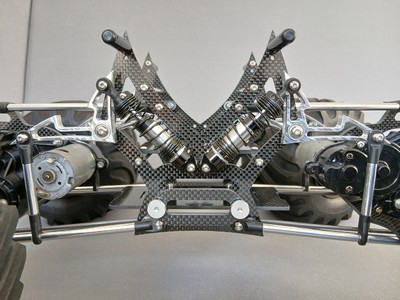

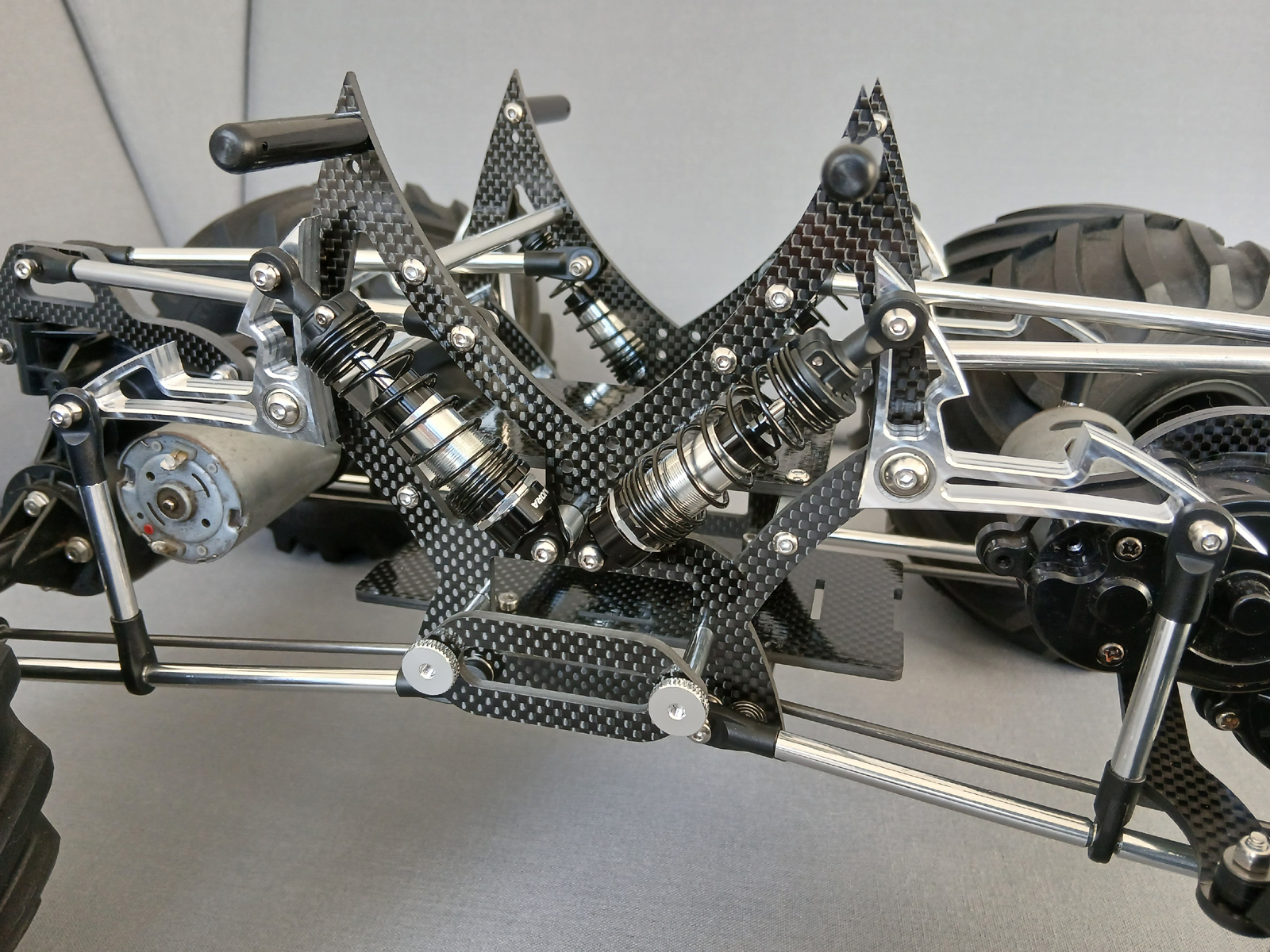

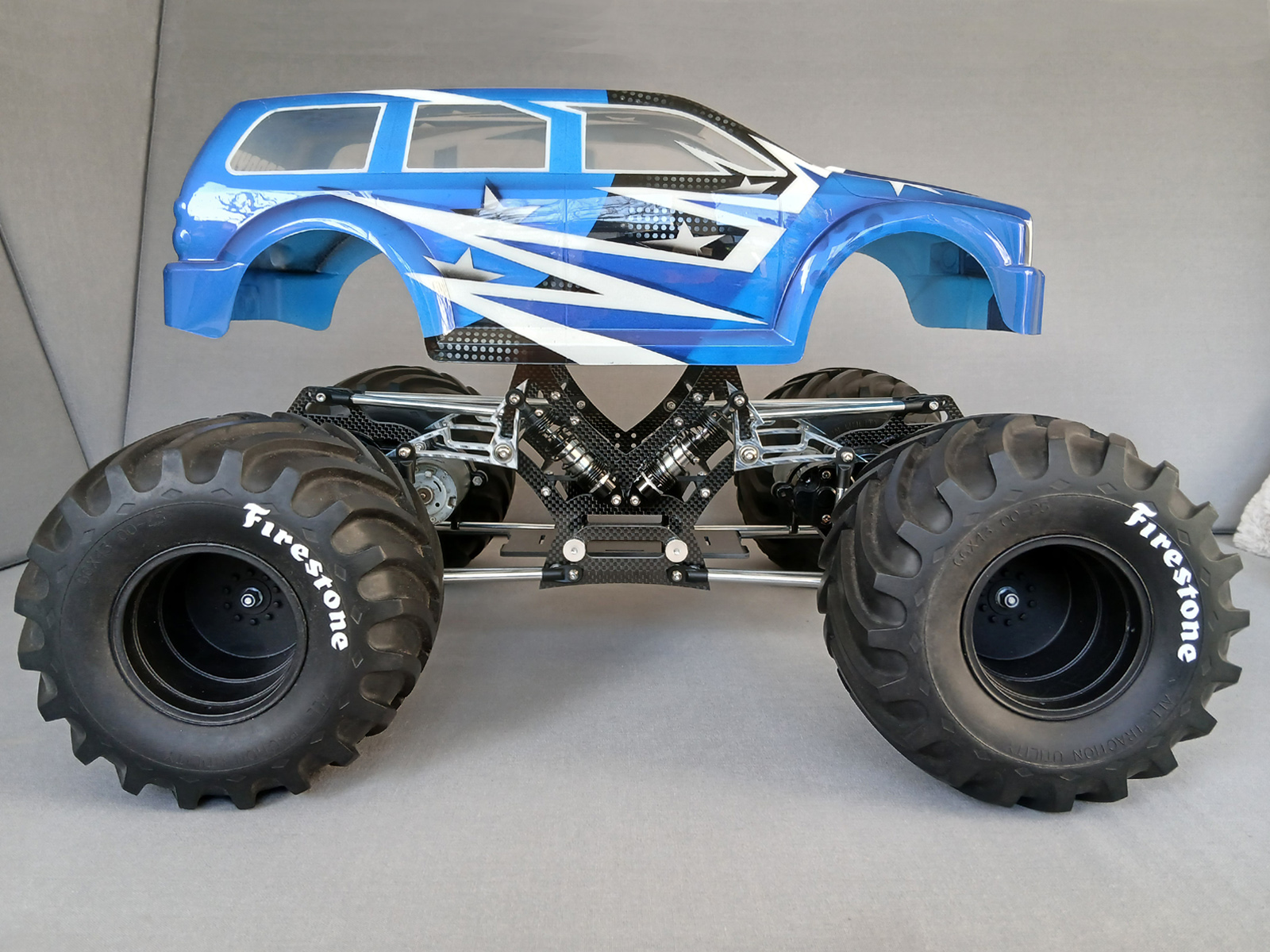

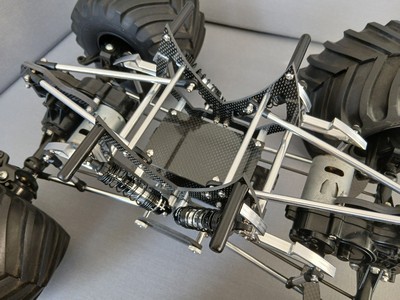

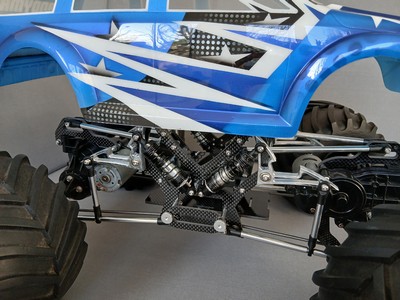

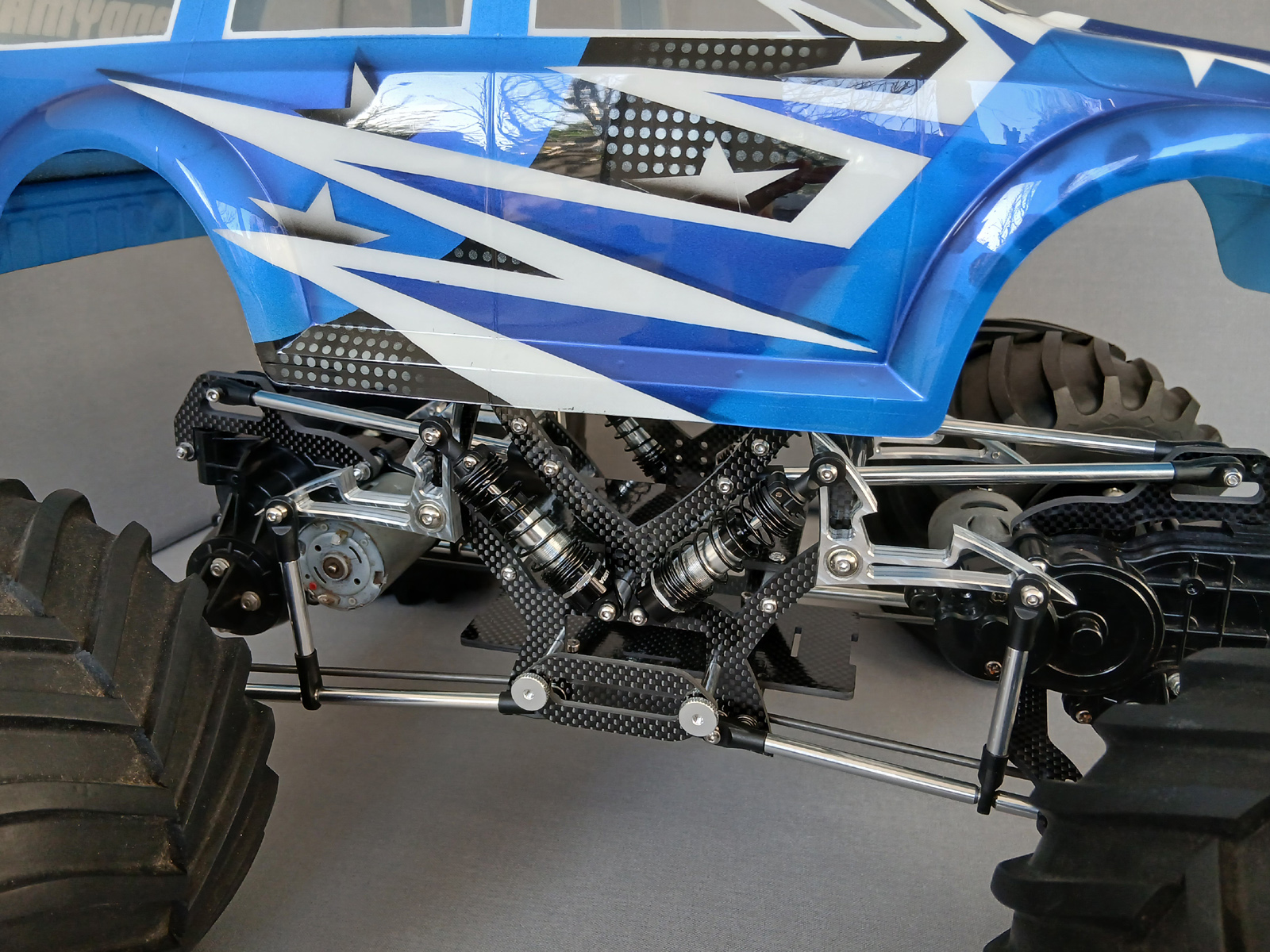

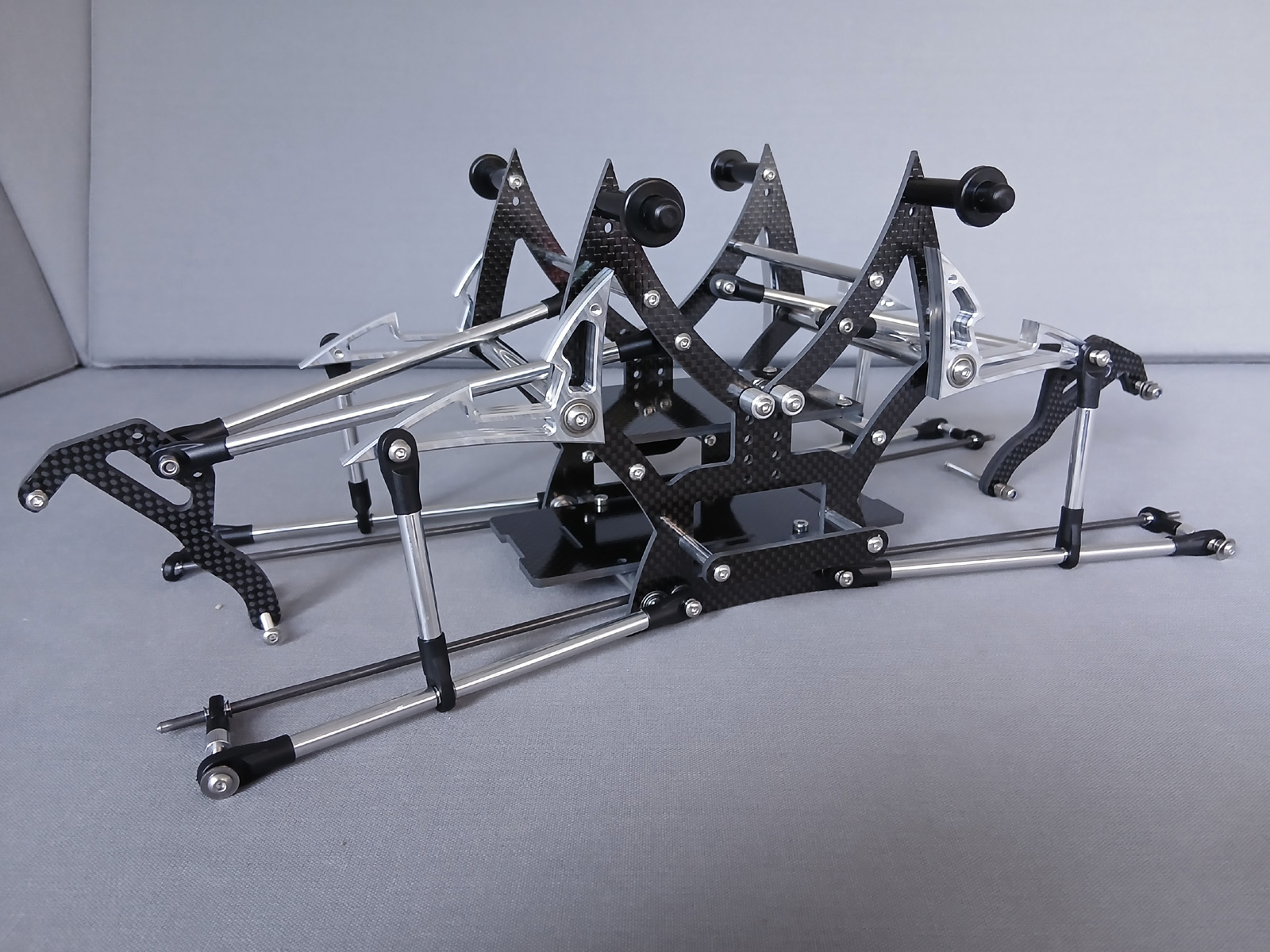

Chassis Features:

3mm Carbon Fibre chassis

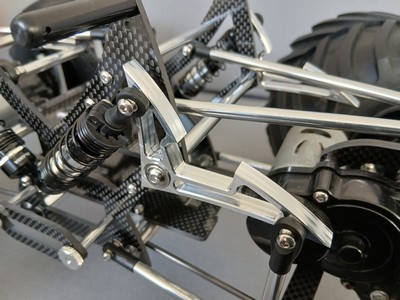

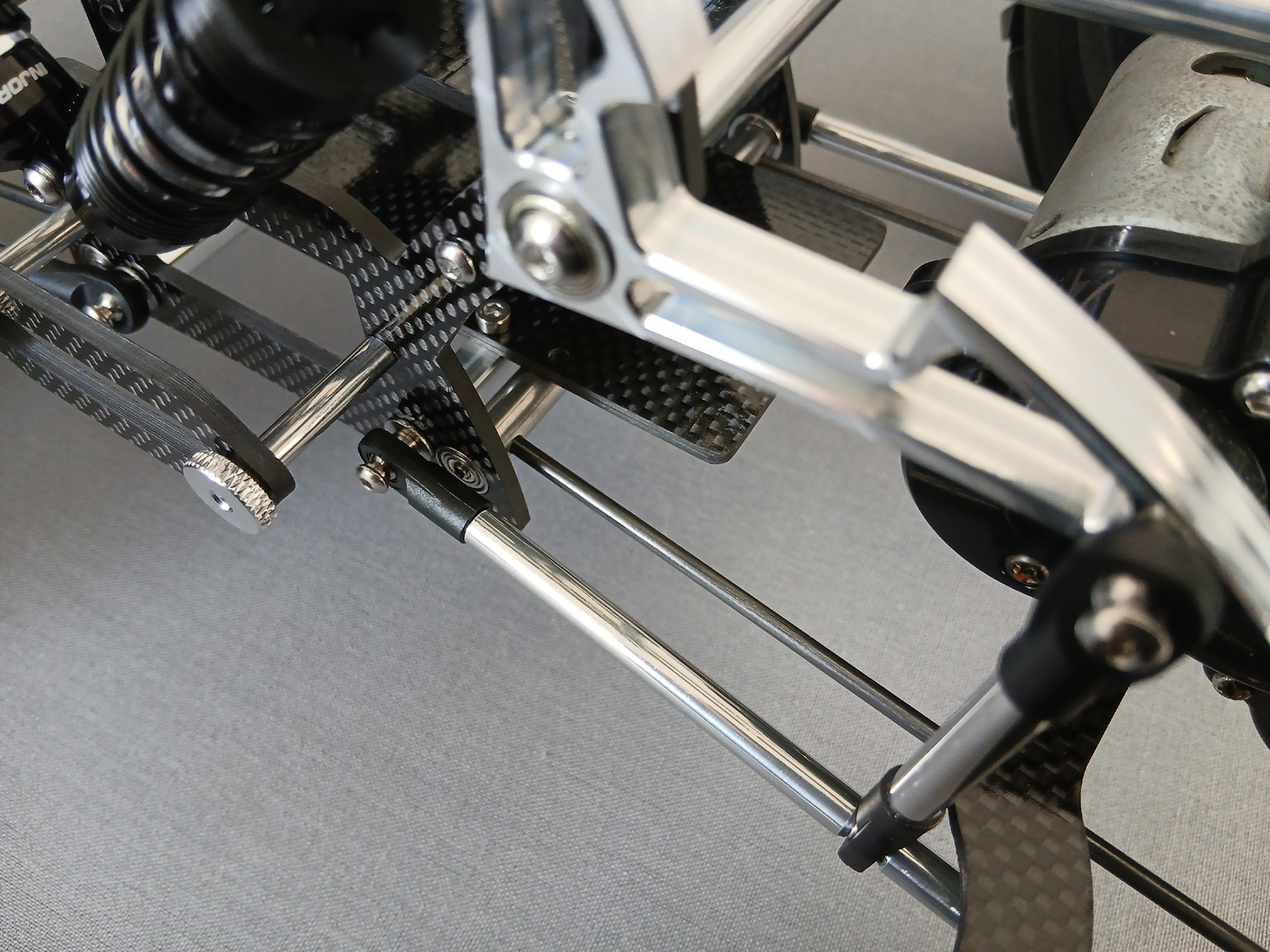

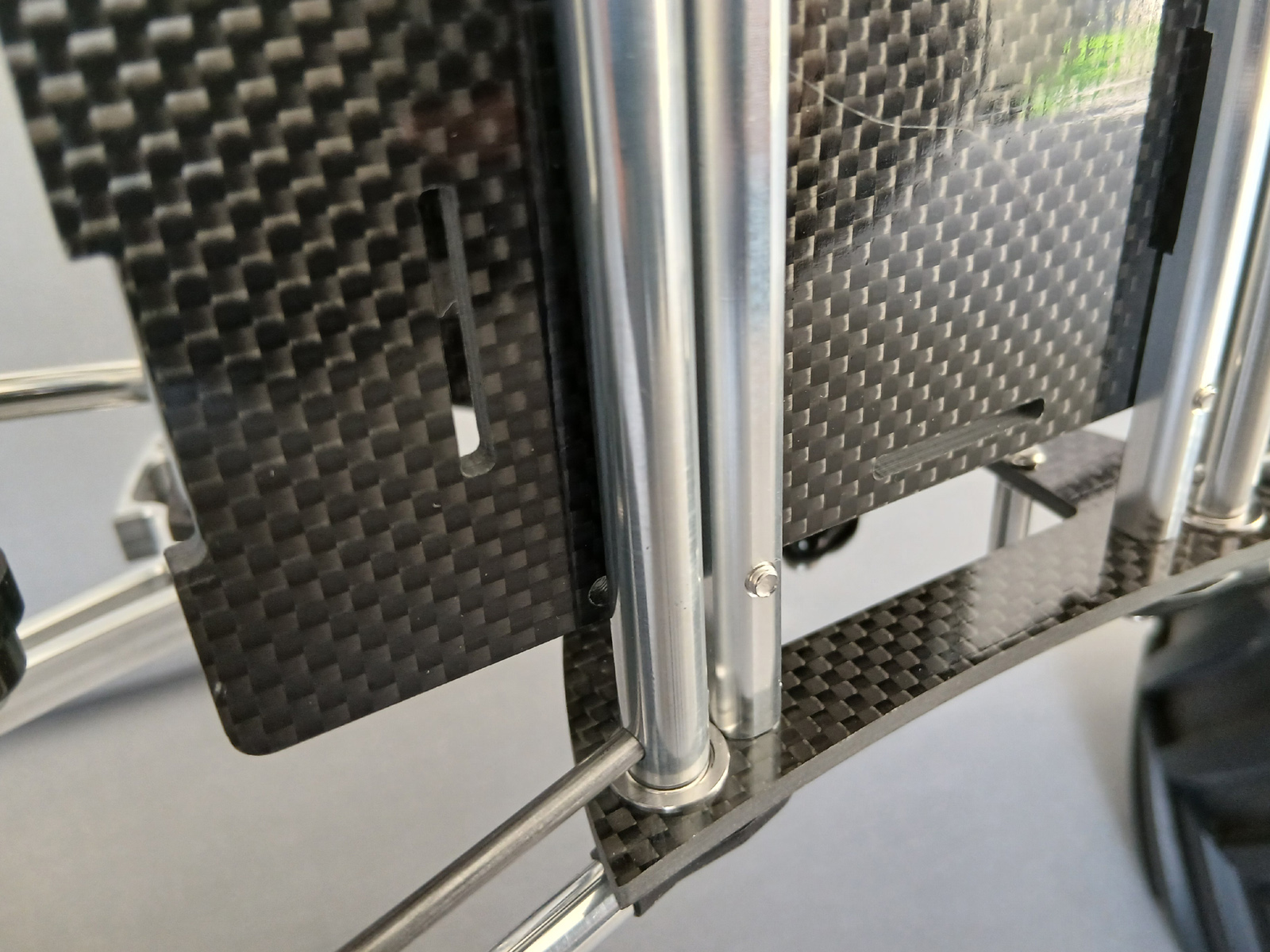

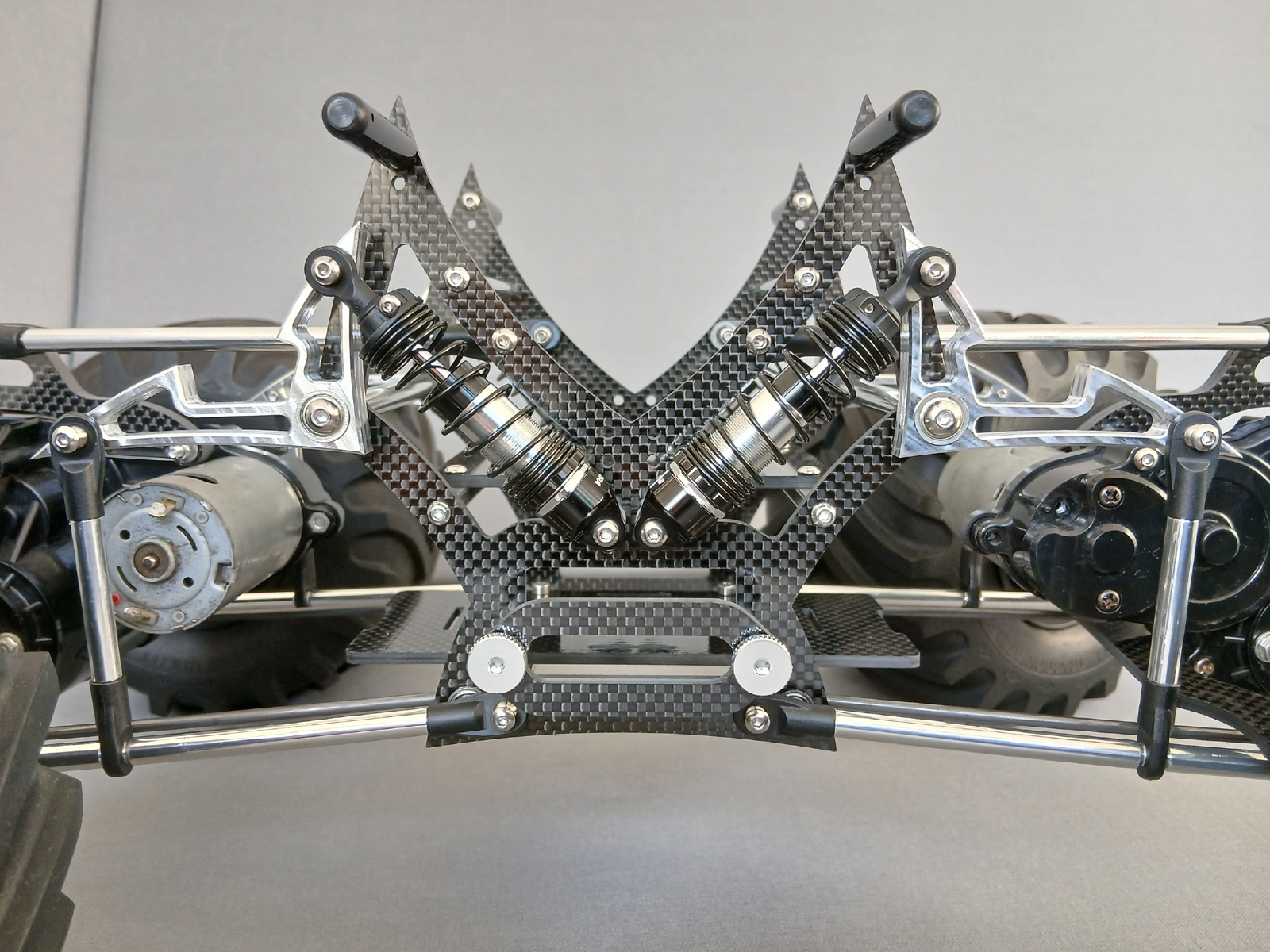

8mm thick carbon cantilevers run on dual flanged bearings

Aluminium 4 link suspension

Carbon top and lower link mounts

Accepts 80-100mm shocks (not included)

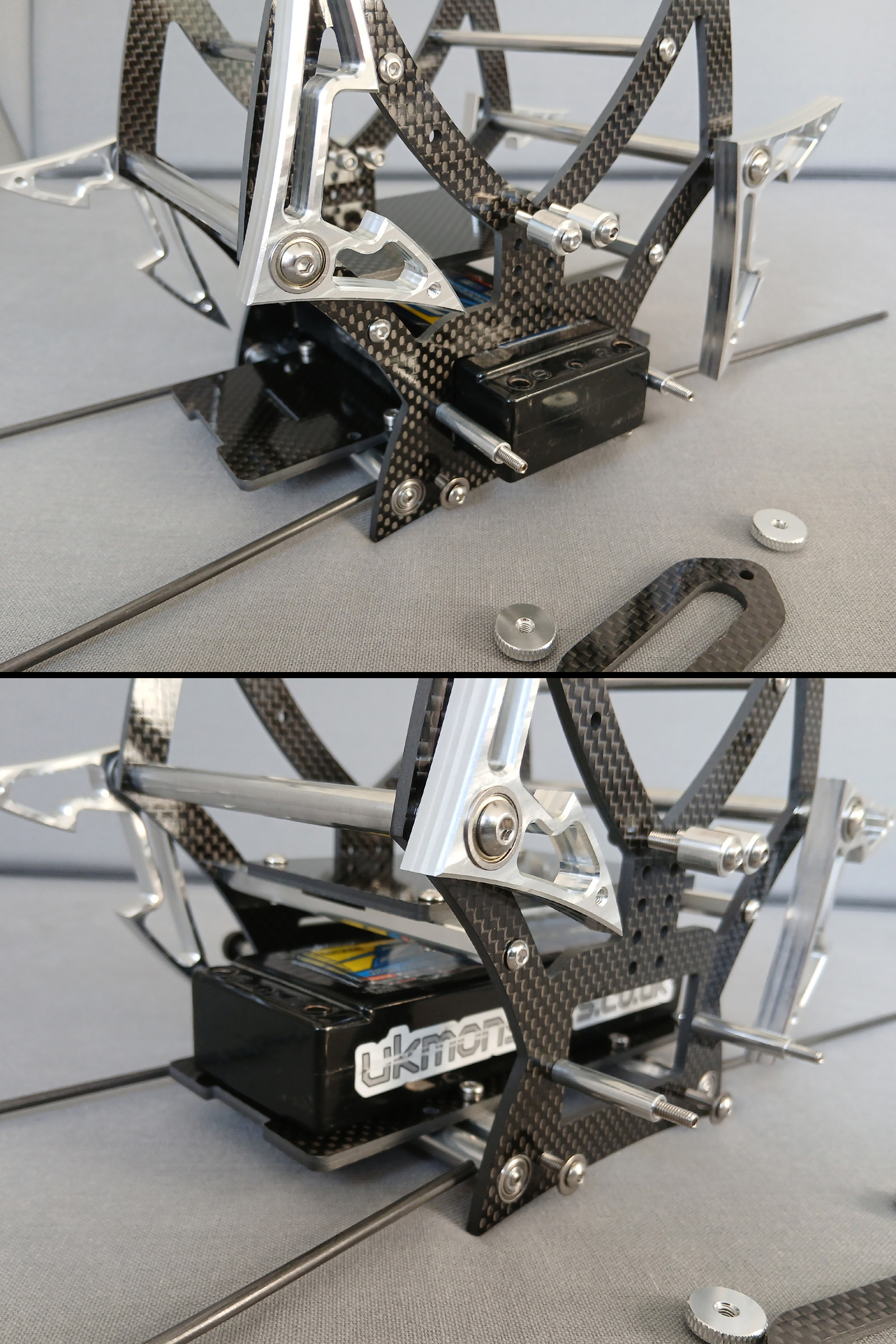

Choice of length or width mounted battery

Side body posts

wheelbase is 13.5"

2.1 revisions:

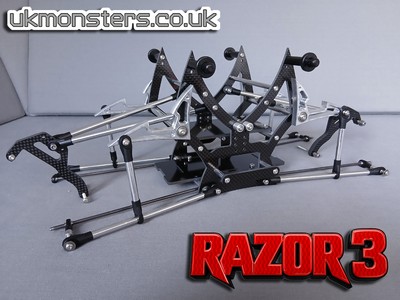

Chassis comes assembled as shown

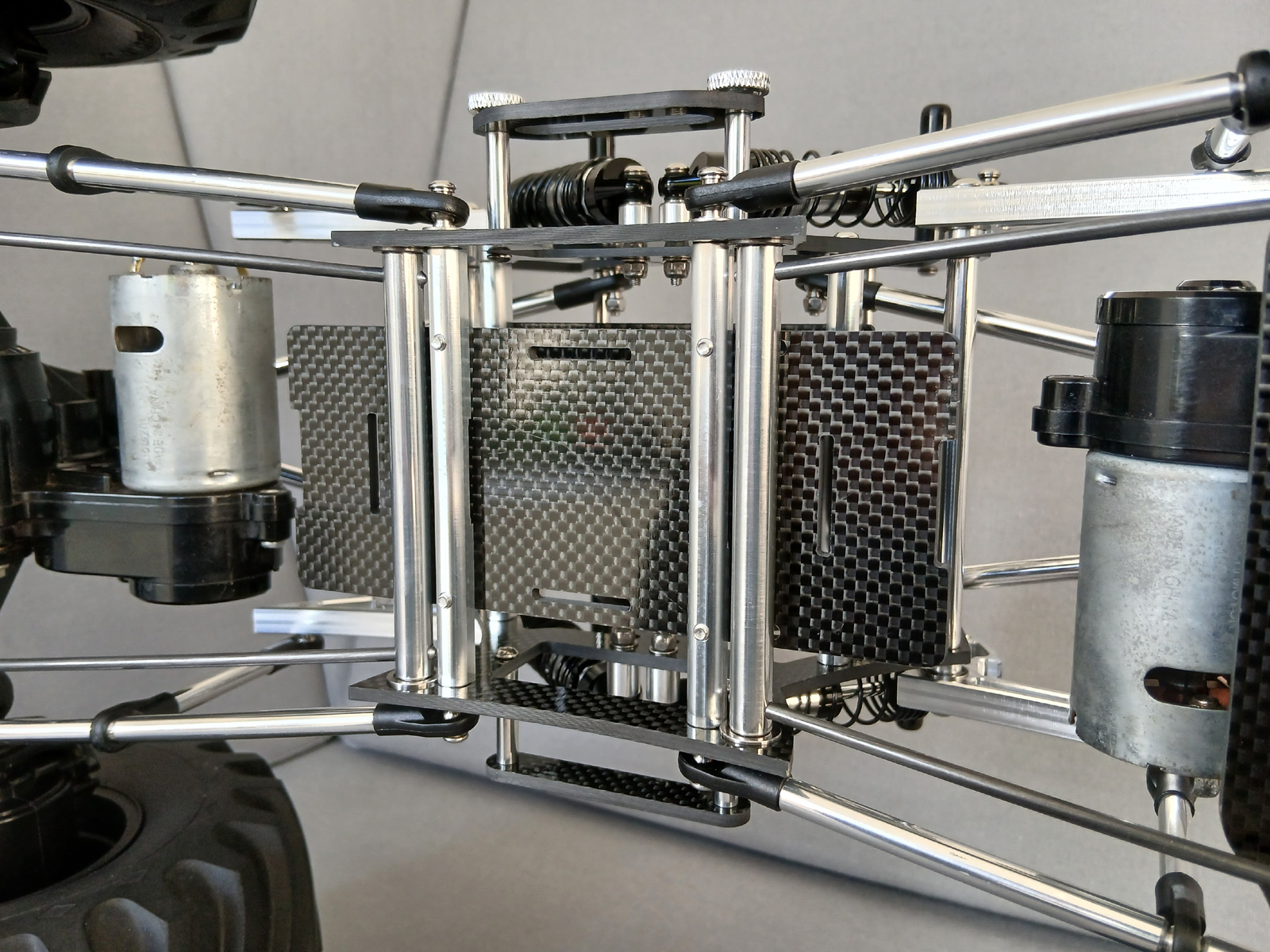

Longer carbon battery tray supports a wider veriety of lipos.

Included velcro straps can be swapped without removing the lower tray.

revised cantilever design and shock mounting positions for greater shock length support.

V2 upper link mounts included.

Thumb screws included for side mounted battery.

UK prices:

Chassis kit* - £235

Shipping £12

email me for best price

or buy on ebay

------------------------------------------------

USA/wordwide prices:

Chassis kit* - $310

Shipping $55 fedex 1-3 days

email me for best price

or buy on ebay

*The chassis kit included whats shown in the first picture. You will need your own shocks, gearboxes, wheels, tyres, body, etc.

Installation and use:

This chassis kit is designed to work with your Clodbuster axles with only minor modifications. A 3mm hole needs to be drilled at the bottom of each axle tube to attach the lower ink mounts.

The chassis accepts shocks in the 80mm-100mm range.

The upper and lower link mounts are included to attach to your gearcases.

You will need a vertical steering kit and/or rear lockout kit to complete, these are available in the steering section. This chassis is NOT compatible with the BTA steering kit.

Ideal ride height is the top links just below hiting the cross bar at full compression.

PDF Instructions Download

Chassis Features:

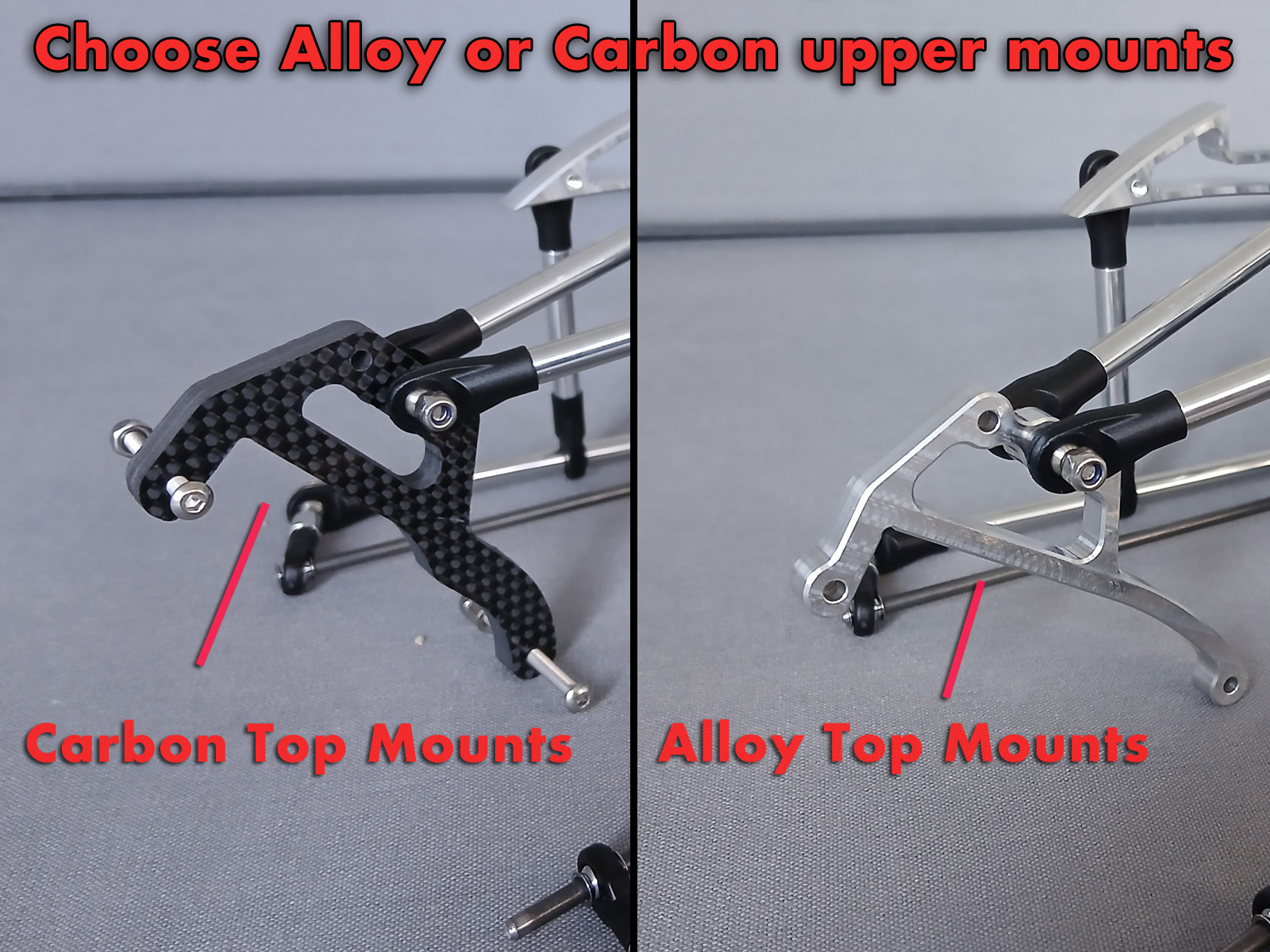

CNC all alloy or alloy/carbon fiber

ball bearing sway bars

Side body mounts 100mm apart

wheelbase adjustable 13"- 13.5"

Battery tray for 2s lipo (138x48mm)

Accepts shocks 65mm-85mm

Includes carbon top link mounts

High body mounts included

Chassis comes assembled as shown

UK prices:

Chassis* - £350

Shipping £12

email me or buy on ebay

------------------------------------------------

USA/wordwide prices:

Chassis* - $500

Shipping $60 fedex 1-3 days

email me or buy on ebay

*The chassis includes top link mounts and high body mounts. You will need your own shocks, gearboxes, wheels, tyres, body, etc.

Installation and use:

This chassis kit is designed to work with your Clodbuster axles with only minor modifications. A 3mm hole needs to be drilled at the bottom of each axle tube to attach the lower ink mounts.

The chassis accepts shocks in the 65mm-85mm range.

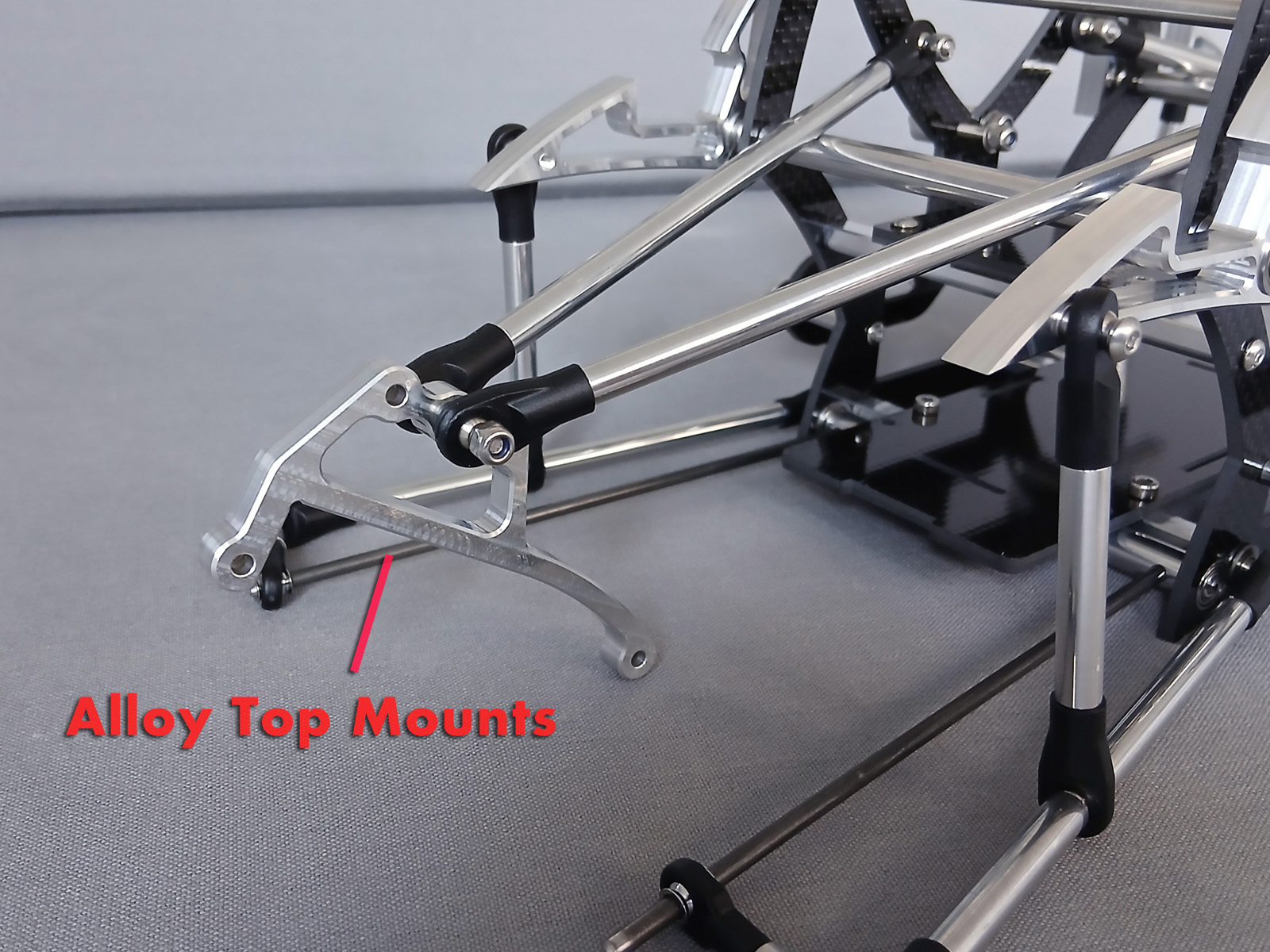

The upper link mounts are included to attach to your gearcases.

PDF Instructions Download
