UKMonsters Alloy CNC lower arms x 4 |
What it does |
Whats Included |
How much and where to buy it |
How to Install it |
These are 4 custom alloy CNC lower arms that can be used for your custom truck project. They also fit the Clodbuster V-chassis.
|
4 x CNC lower alloy arms
8 x M4 grub screws
8 x SSD rod ends
|
UK: £50 + £3 post
USA: $70 + $6 shipping
email or buy on ebay by clicking:
|
These fit the V-chassis as a direct replacement.
They could also be used for your custom projects, below is all the dimensions.
|
|
|
| |
Clodbuster - "V2" Top Link Mounts |
What it does |
Whats Included |
How much and where to buy it |
How to Install it |
Lets you attach upper links to your Clodbuster gearboxes using the original gearbox holes, these V2 mounts give more mounting locations further back.
|
4 x top link plates in carbon fibre (each top link is made up of 2 x 3mm plates)
All hardware, locknuts, washers and spacers
|
UK: £20 + £2 post
USA: $25 + $6 shipping
email or buy on ebay by clicking:
|
The front 3 spacer washers all have a flat cut on them, this faces the gearbox to allow clearance.
The rear is attached with 6mm spacer.
|
|
| |
Clodbuster - "V2" Alloy Top Link Mounts |
What it does |
Whats Included |
How much and where to buy it |
How to Install it |
Lets you attach upper links to your Clodbuster gearboxes using the original gearbox holes, these V2 mounts give 3 mounting locations.
These can be used in place of the carbon V2 upper mounts and work with the V-Chassis, Razor 2.1 and Race chassis.
|
2 x Alloy top link mounts.
All Hardware, locknuts, washers and spacers.
|
UK: £33 + £2 post
USA: $40 + $8 shipping
email or buy on ebay by clicking:
|
The front 3 spacer washers all have a flat cut on them, this faces the gearbox to allow clearance.
The rear is attached with 6mm spacer.
|
|
| |
Aluminium Shock stand offs |
What it does |
Whats Included |
How much and where to buy it |
|
Replacements for the shock mounts on the UKMonsters chassis or as essential spares for your own custom project.
 |
4 x Alloy shock stand offs.
|
UK: £8 + £2 post
USA: $10 + $7 shipping
email or buy on ebay by clicking:
|
|
|
| |
Clodbuster - Lower Link Mounts (No shock mount) |
What it does |
Whats Included |
How much and where to buy it |
How to install it |
Lets you attach lower links to your Clodbuster gearboxes, also shock/cantilever pickup points.
|

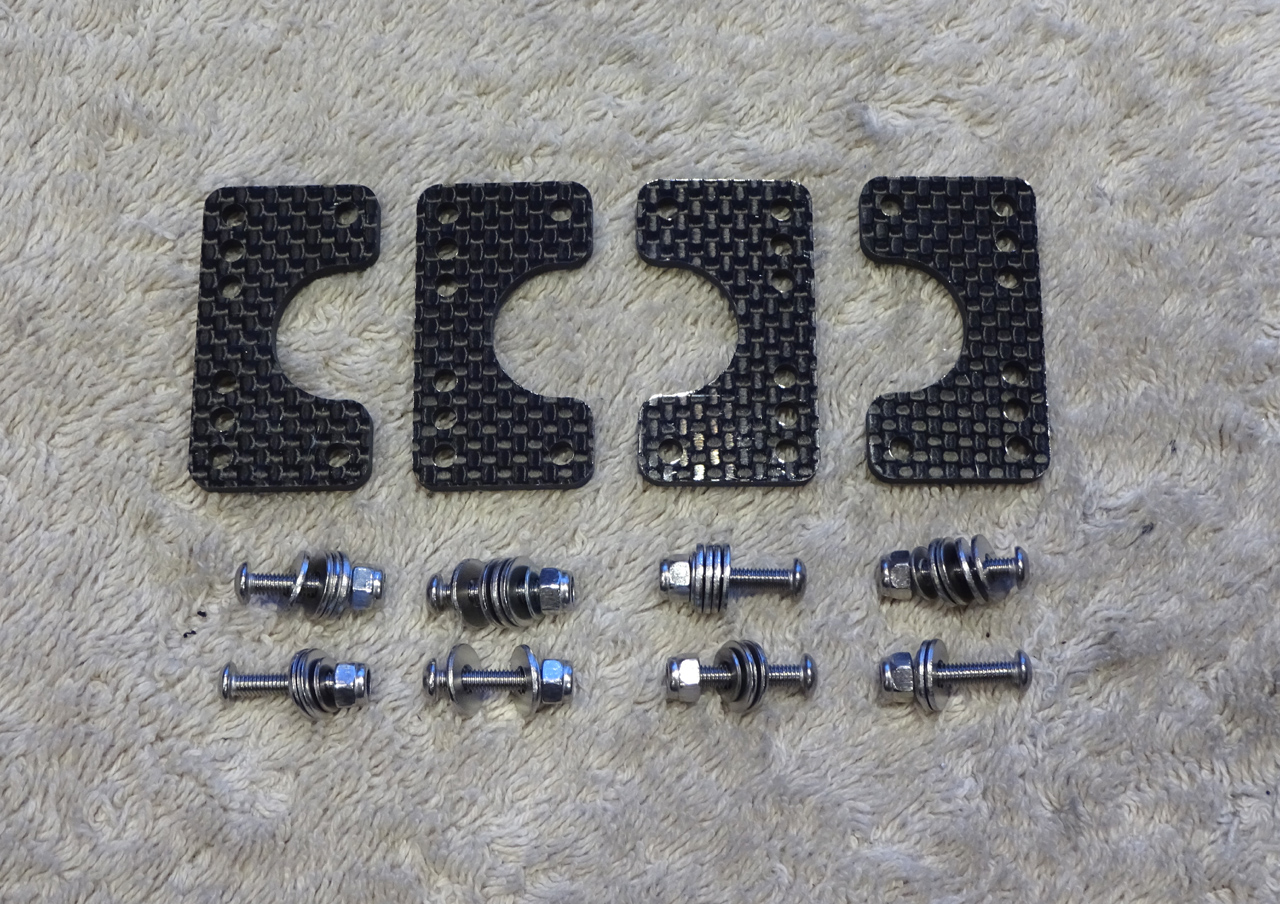

Includes 4 x lower link plates in carbon
8 x screws, washers and nuts.
24 x spacer washers (1mm)
|
UK: £20 + £2 post
USA: $25 + $6 shipping
email or buy on ebay by clicking:
|

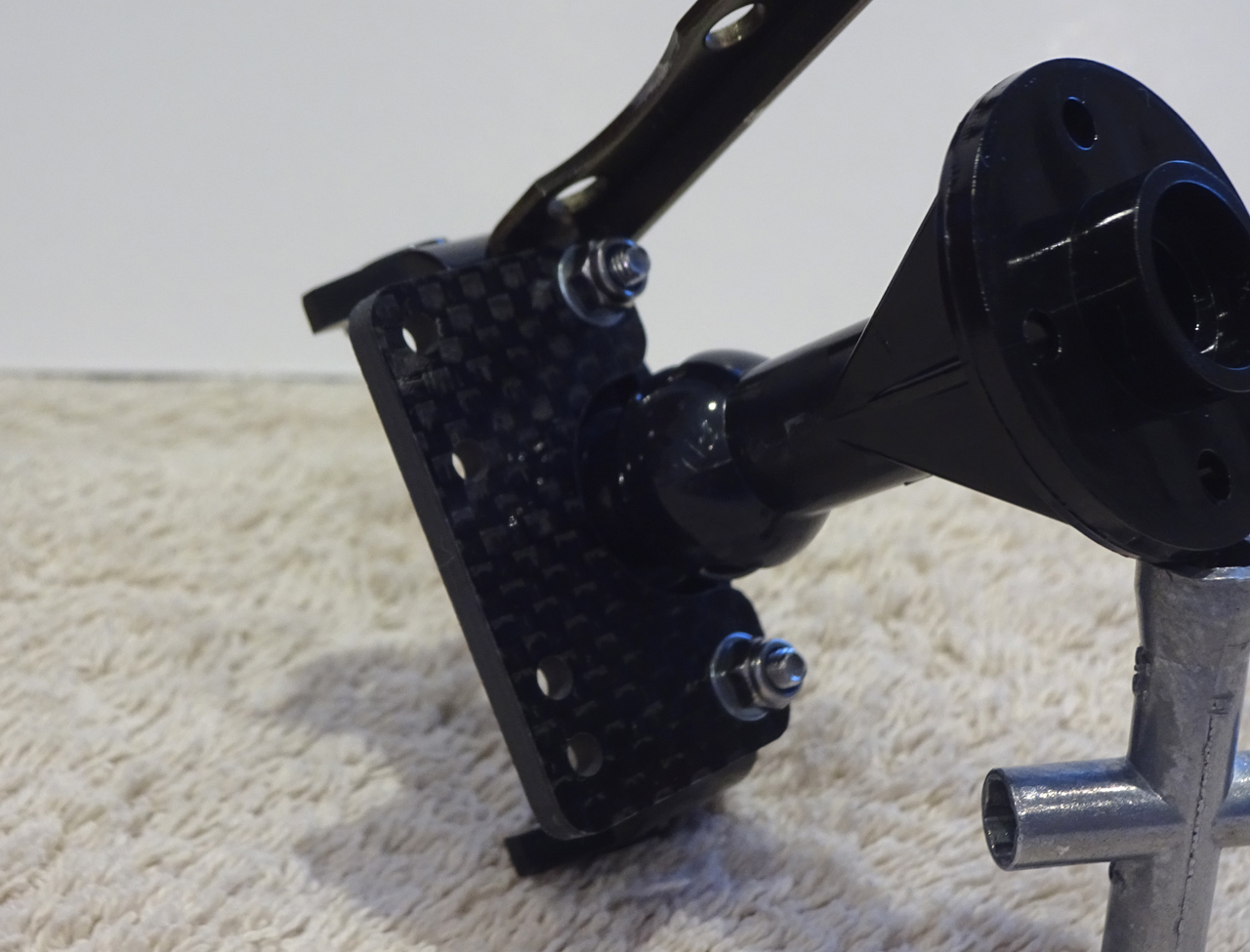

New v2 plates are symetrical and can be mounted either way up
you will need to drill a 3mm hole at the bottom of the axle tube.
Use 2 spacer washers at the top and 4 at the bottom.
|
|
|
Clodbuster - Lower Link Mounts (Single shock mount) |
What it does |
Whats Included |
How much and where to buy it |
How to install it |
Lets you attach lower links to your Clodbuster gearboxes.
These have a shock mounting point above the axle brace, you can attach 1 shock to the mounting point.
|
4 x lower link plates in carbon
8 x screws, washers and nuts.
4 x 4mm spacers
4 x 6mm spacers
|
UK: £24 + £2 post
USA: $32 + $6 shipping
email or buy on ebay by clicking:
|
You will need to drill a 3mm hole at the bottom of the axle tube.
Use the 4mm spacer at the top and 6mm spacer at the bottom
|
|
| |
Clodbuster - Lower Link Mounts (Double shock mount) |
What it does |
Whats Included |
How much and where to buy it |
How to install it |
Lets you attach lower links to your Clodbuster gearboxes.
These have a shock mounting point above the axle brace, you can attach 2 shocks to the mounting points.
|
4 x lower link plates in carbon
8 x screws, washers and nuts.
4 x 4mm spacers
4 x 6mm spacers
|
UK: £24 + £2 post
USA: $32 + $6 shipping
email or buy on ebay by clicking:
|
You will need to drill a 3mm hole at the bottom of the axle tube.
Use the 4mm spacer at the top and 6mm spacer at the bottom
|
|
| |
Clodbuster - 4-link conversion for stock chassis (10.5" or 12") |
What it does |
Whats Included |
How much and where to buy it |
How to install it |
This replaces the stock plastic arms with the 4-link suspension and adds carbon plates strengthen where the links attach to the stock plastic chassis.
the 10.5" kit is the same as stock.
The 12" kit adds 1.5" of wheelbase.
You will need to choose some lower link mounts for your gearbox as these are not included. Depending on your build you will want either single or double shock mounts.
|
8 x metal links with rod ends
2 x carbon chassis side braces
1 x carbon chassis lower brace
all M3 hardware shown.
This kit does not include lower link mounts for the gearboxes, you will need to choose some that meet your requirements for single, double or no shock mounts.
If you are ordering the 12" kit and want to keep the steering servo in the middle of the chassis, tell me when ordering and I will include some extended center steering links.
|
UK: £45 + £2 post
USA: $62 + $8 shipping
email or buy on ebay by clicking:
10.5"
12"
|
All hardware is included to attach the carbon plates and all 8 links to the chassis. Hardware is also included top attach the lower links to your existing gearbox mounts
Instructions download.
|
|
| |
Clodbuster - 4 x Alloy axle braces |
What it does |
Whats Included |
How much and where to buy it |
How to Install it |
These 4 braces can be added to your gear cases to strengthen the axle tubes.
|
4 x Alloy axle braces.
Hardware shown to fit them.
|
UK: £46 + £3 post
USA: $60 + $9 shipping
email or buy on ebay by clicking:
|
All 3 braces attach in 3 places and require your gearboxes to be disassembled in order to fit all the screws.
These work with the V-chassis kits.
|
|
|
Clodbuster - Wheel wideners (1.5" / 38mm total) |
What it does |
Whats Included |
How much and where to buy it |
How to Install it |
These attach to the existing wheel hubs and increase the width of the truck by 19mm per side for a total of 38mm/1.5" of extra width.
These require no drilling of the wheels.
|
4 x Delrin wheel wideners
4 x Axle extenders and washers
20 x M4 cap screws
|
UK: £25 + £2 post
USA: $32 + $7 shipping
email or buy on ebay by clicking:
|
Loosley attach the wheel hub to the widener with the 5 screws before tightening them up in a star pattern.
Put the assembly on the hub followed by the washer then add some locktight to the axle extender before tightening it up.
|
|
| |
Clodbuster - 1/2" Carbon Lift kit |
What it does |
Whats Included |
How much and where to buy it |
How to Install it |
These fit to the stock chassis and lift the chassis by 1/2 inch (13mm). Giving the truck a lift or allowing for shorter aftermarket shocks without loosing the ride height.
|
4 x Carbon plates
8 x M3 locknuts and washers
8 x 16mm button screws
8 x 20mm button screws
|
UK: £15 + £2 post
USA: $19 + $7 shipping
email or buy on ebay by clicking:
|
The plates attach to the chassis with the longer 20mm screws and the original nuts.
Your shocks can be fitted to the plates with the included 16mm screws, nuts and washers.
|
|
| |
Clodbuster - Tripple Shock Mount kit |
What it does |
Whats Included |
How much and where to buy it |
How to Install it |
This kit lets you install 3 shocks on each corner of your Clodbuster.
The Kit also gives a 20mm lift to the suspension. The stock shocks are shown below, to get back to standard ride height you would need 90mm shocks.
|
8 x Carbon plates
All the hardware shown
Instructions of how to install it
|
UK: £26 + £3 post
USA: $35 + $8 shipping
email or buy on ebay by clicking:
|
Instructions are included, the plates mount to the chassis and ladder bars as shown.
|
|
| |
|
| |
